●3 microphone inputs, 2 auxiliary inputs, 2 auxiliary outputs, most convenient for combining public broadcasting systems.
●100V, 70V constant voltage output and 4-16Ω constant resistance (balanced, not grounded) output.
●With mute function, easy to insert priority broadcast.
●Independent volume control for each input channel.
●Treble and bass tone control.
●5-unit LED level meter, easy to observe output level.
●Output short circuit, overvoltage, overcurrent, overpower protection and alarm.
●Power-on delay protection to avoid impact on the speaker at the moment of power-on.
●Using high-fidelity Class D amplifier design, it has power saving function and reduces power loss.

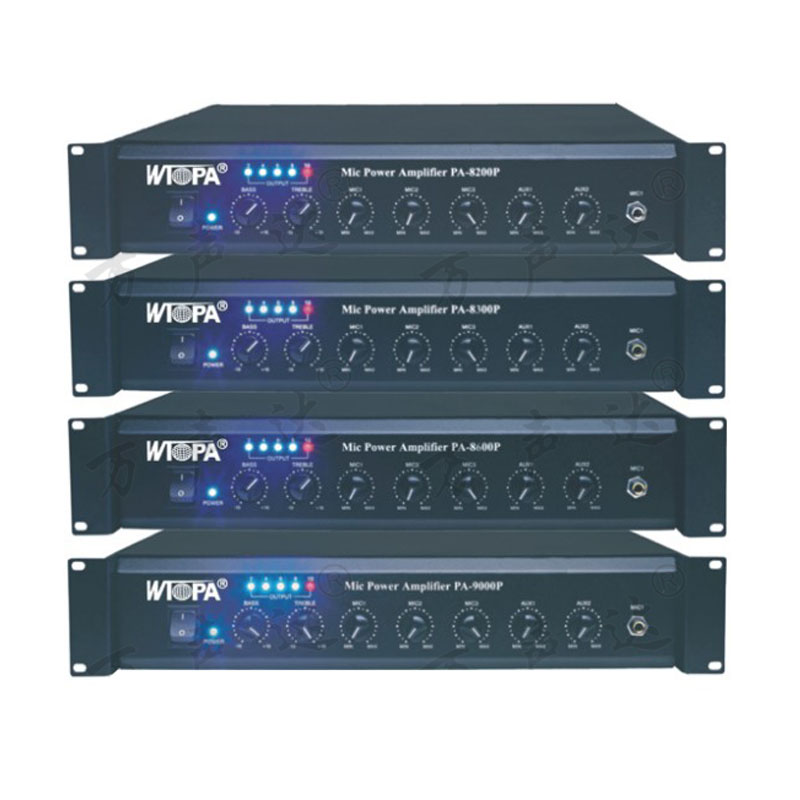

Model | PA-8200P | PA-8300P | PA-8600P | PA-9000P |
Rated output | 70W | 130W | 260W | 360W |
Output Regulation | From full load to no load, less than 3dB |
Output method | 4 -16Ω balanced output, 70V, 100V constant voltage output |
Auxiliary output | 600Ω 1V(0dBV) |
Input impedance and sensitivity | AUX1, AUX2: 10KΩ, 300mV, mixed single channel |
Mic1, Mic2: 600Ω, 150mV, single channel Mic3: 600Ω, 50mV, single channel |
Frequency Response | 50HZ-17 kHz |
Harmonic distortion | Less than 0.1% at 1kHz, 1/3 higher power |
Signal-to-Noise Ratio | AUX1、AUX2:≥71dB |
Mic1、Mic2、Mic3:≥66dB |
Tone Adjustment | Bass: ±10dB (1000 Hz) |
Treble: ±10dB (1000 Hz) |
Protect | AC fuse X1, DC output, overcurrent, overvoltage, overpower |
Mute function | Mic 1 input attenuates 0~-30dB when other inputs are used |
Power saving mode | High-fidelity Class D amplifier design |
power supply | AC 220V/50Hz |
power consumption | 120W | 240W | 500W | 700W |
Dimensions (L x W x H) | 482X365X88(mm) |
Gross Weight | 11.19kg | 12.69kg | 14.83kg | 16.18kg |
net weight | 9.26kg | 11.26kg | 13.40kg | 15.43kg |
